Ss Brewtech eBrewing RIMS Kit

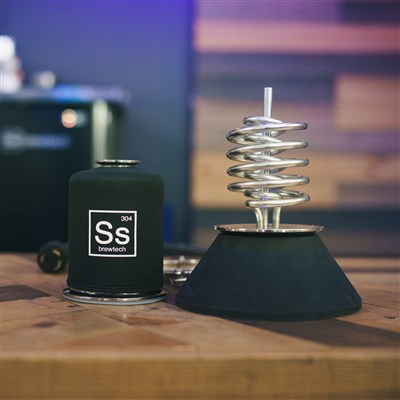

The Ss Brewtech Recirculating InfuSsion Mash System (RIMS) features a 3500w Incoloy 800 helical element with a thermoprobe integrated into the base which is designed to read wort temperature as it leaves the RIMS housing. When used with an InfuSsion Mash Tun, the system is designed to provide the brewer the temperature gradient between mash and recirculating wort, allowing the perfect pump speed to be dialed in.

The RIMs kit includes a fully welded housing with TC connections, silicone base, and neoprene insulating jacket. For stabilization and control in a multi-step mash process, there is simply not a better system on the market.

Connectivity was an important consideration for our eBrewing Systems, we wanted the flexibility and familiarity of a plug that could be adapted to an existing customer setup, and the reliability of a UL approved connector type.  For the 240VAC element connector, we settled on the common NEMA L6-30 standard, which is a 3-wire twist-lock plug type, capable of delivering 30 amps of current.  Finally, for the PT100 temperature probes, we opted for the 3.5 mm mini-jack connector standard, commonly used for headphones, which is both durable and easy to use.

Ss Brewtech RIMS Kit Features

• 3500w Incoloy 800 Helical Element w/ integrated thermoprobe
• Sanitary TC Connections
• Neoprene Insulation Jacket
• NEMA L6-30 Plug
• 240VAC
