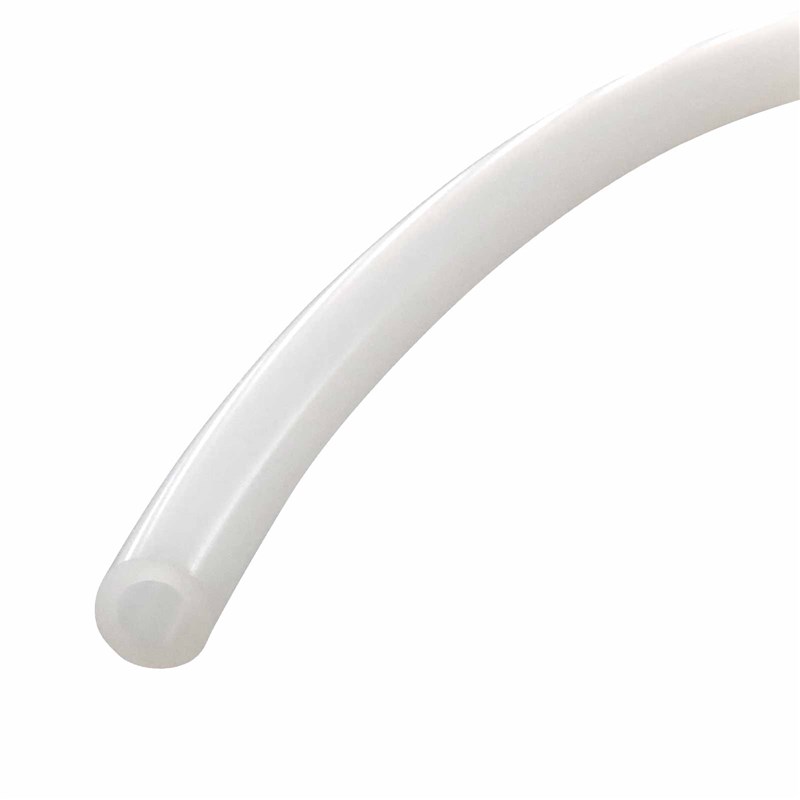

Silicone Tubing - 100 Foot Roll (1/8" ID X 5/16" OD)

Silicone Tubing - 100 Foot Roll  / 1/8" I.D. x 5/16" O.D.

FDA / NSF Approved Silicone Tubing – engineered for flexibility, durability, and exceptional temperature resilience, making it a top choice for demanding applications in food, beverage, pharmaceutical, and laboratory environments. This peroxide-cured construction contains no sulfur or acid-producing chemicals, eliminating risks of staining, corrosion, or deterioration of materials it contacts. Its advanced formulation provides remarkable resistance to UV rays, ozone, and other environmental factors, ensuring longevity and consistent performance in a wide range of conditions. With a temperature tolerance ranging from -100°F to 500°F (350°F max for NSF applications), this tubing is ideal for both hot and cold applications, including thermal sleeving and appliance use. Additionally, its self-extinguishing properties enhance safety in electrical or high-heat environments. Designed for versatility, this tubing is easy to sterilize. It can be low-pressure steam sterilized in-line or autoclaved up to 250°F during standard autoclaving cycles. However, for applications involving repeated high temperatures or continuous steam, it is advisable to monitor for potential softening, as this tubing may eventually become gummy and require replacement. To prevent potential damage to the tubing, please select fittings and clamps carefully, avoiding sharp barbed fittings or unlined metal clamps that could tear the tubing wall. Available in custom colors for industrial use with a minimum order, this tubing provides an optimal solution for applications requiring durability, flexibility, and safety.

FDA Approved Silicone Tubing Features

• Odorless, tasteless, and chemically inert
• Withstands extreme temperatures from -100°F to 500°F (up to 350°F for NSF applications†)
• Compliant with FDA standard 21 CFR 177.2600 for safe food contact
• Approved by the National Sanitation Foundation (NSF-51) for use in food and beverage equipment†
• Meets 3-A Sanitary Standards for Number 18-03 (for reusable rubber and rubber-like materials)
• Free from BPA, latex, and phthalates; RoHS compliant
• Durable and reusable — suitable for repeated sterilization^
• Semi-transparent natural color allows visual inspection of flow
• Flexible, resilient, and resistant to permanent deformation
• Excellent electrical and weather-resistant properties; withstands UV rays, ozone, gases, and moisture

Usage Applications for Silicone Tubing

• Aerospace applications*
• Household appliances
• Automotive fluid systems
• Beverage and dairy services
• Cell culture processes
• Chemical transfer operations
• Cleanroom environments
• Deionized water transportation
• Dialysis equipment
• Duplicating and copying machines
• Fermentation lines
• Gaskets, seals, and O-rings
• Hot-fill and vacuum systems
• Insulation sleeving
• Laboratory uses
• Liquid resin feeding
• Peristaltic pump applications
• Personal care product processing
• Pharmaceutical manufacturing
• Protective jacketing
• Sterile bottle filling
• Stirring vessels
• Thermal protection
• Vaccine transfer
• And more

Physical Properties:

• Hardness: Shore A ±5, 50
• Tensile Strength: 1444 psi
• Elongation at Break: 608%
• Tear Resistance (Die B): 120 ppi
• Modulus at 100%: 186 psi
• Brittle Temperature: -100°F
• Maximum Operating Temperature: 500°F
• †Maximum Operating Temperature for NSF: 350°F

Manufacturer Part # 2800623-100

Silicone Tubing Specifications

Inner Diameter

1/8"

Outter Diameter

5/16"

Working Pressure

25 psi (at 70°F)

LBS Per 100 FT Roll

3.32 LBS

Roll Size

100 feet

Recommended Fittings and Clamps:

• Stainless steel barbed fittings
• Oetiker Style ear type clamps
• Worm gear clamps

Manufacturer Part # 2800623-100

*Product image may not represent the actual scale of the ID & OD of the hose.
