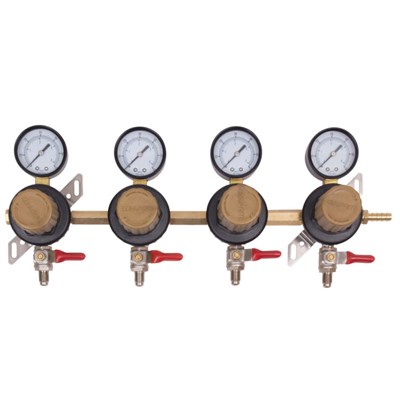

Taprite Secondary Regulator - 4 Body / 4 Pressure

This Taprite 4 Body Secondary Co2 Regulator is used is used to dispense two or more kegs from the same Co2 tank. A secondary regulator will allow you to regulate the pressure of each keg individually.

These low pressure secondary regulators require that a primary regulators require a primary regulator to be attached directly to your gas cylinder.

This 4 Body Secondary Taprite Regulator will allow you to set 4 separate pressures to give you more control over your draft beverage system. This is a great regulator for homebrewers who are looking to carbonate beer and serve beer at the same time! Secondary regulators are also great for serving different types of beverages - beer, soda, sparkling water, etc. as each will require a different serving pressure.

Taprite Secondary Regulator Configuration Options

Due to increasing prices, we're now offering the Taprite regulators in 2 different configurations.

Configuration with Generic Components
Features a Taprite regulator body with generic components. Generic 0-60psi gauge and a generic chrome-plated brass 2-way shutoff valve.

Configuration with Taprite Components
Features a Taprite regualtor body with only Taprite components - Taprite 0-60psi gauge and Taprite 1600 ball type shut-off with 1/4" MFL fitting.

Using Low Pressure Secondary Regulators

Attach a primary regulator to the gas cylinder (CO2, Nitrogen, Beer Gas, etc.)

Set pressure on primary regulator to max desired system working pressure.

Connect gas hose from primary regulator to secondary regulator bank.

Enjoy controlling pressure to kegs individually!

Other features and benefits of Taprite Secondary Regulators:

• To protect your draft dispensing system, each regulator has a built-in high volume, high pressure external safety relief valve factory set to relieve at 55-65 PSIG.
• Taprite secondary regulators are designed to further reduce pressure from a primary regulator to a proper dispensing level.
• Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up.
• Secondary regulator body threading are 1/4" NPT (F).
• Outlet fittings feature Taprite 1600 ball type shut-off with 1/4" MFL Fittings. Select your appropriate sized barbed swivel nuts to use clamp hose onto each output.
• All models have heavy duty stainless steel wall mounting brackets.
• Maximum delivery pressure: 50 PSIG
• Non-removable adjusting screw creates a maximum delivery pressure to 50 PSIG
• All regulators are pressure tested for leaks and defects prior to delivery to assure in-field reliability.
• Taprite regulators are available in multiple pressure and product models.

How to Setup a Secondary CO2 or Nitrogen Regulator Inside Your Kegerator or Keezer:
