Bevlex Series 170 Reinforced Braided Tubing
Bevlex Series 170 reinforced braided hose is a great NSF-approved beverage hose made with food-grade materials and provides excellent resistance to stress cracking.
-
LLDPE Core Tube Construction - Provides excellent resistance to stress cracking.
-
Food-Grade Materials - Bevlex™ Series 170 beverage hose is NSF-51/61 certified. Polyethylene material complies with FDA Regulation 21 CFR 177.1520 (c) 3.1 b for food contact under conditions of use D through H in Table 2 of 21 CFR 176.170 (c).
-
Polyester Reinforcement - Provides pressure performance and kink resistance exceeding that of simple tubing.
-
Bonded Abrasion-Resistant Copolymer Jacket - Will not separate or ripple in tight bends or during installation in conduits.
-
Phthalate Free
Accuflex Part Number: 170-063X0
Nominal Specifications | Specifications | Note
Accuflex 170-063X0 Nominal Specifications
| Standard Package |
100' Payout Carton |
| Nominal ID |
3/8 in / (0.380") |
| Nominal OD |
19/32 in / (0.593") |
| Working Pressure at 70°F |
300 psi |
| Working Pressure at 122°F |
150 psi |
| Weight |
10.4 kg 22.9 lb |
| Min. Bend Radius |
1.75 in |
| Clamp Size |
15.7 mm |
Accuflex 170-063X0 Specifications
| Brand |
Bevlex® |
| Type |
Tubing |
| Series |
170 |
| Material |
Polyethylene |
| Yarn Color |
White |
| Industry Standards/Certifications |
FDA / NSF® |
Accuflex 170-063X0 Notes
| Note |
Available in 500 ft. lengths |
Scroll to view product options.
| Item / Part # |
Length |
|
|
|
Price |
|

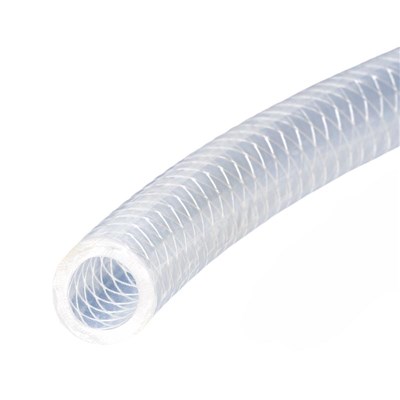

Reinforced Braided Hose (3/8" ID X 19/32 OD) - 100 ft Roll
HO3819-170-100
|
100 feet |
|
|
|
$79.95 |
Add to Cart |
Reinforced Braided Hose (3/8" ID X 19/32 OD) - 300 ft Roll
HO3819-170-300
|
300 feet |
|
|
|
$199.95 |
Add to Cart |
