Recirculation Kit for Ss Brewtech InfuSsion Mash Tun

This kit is designed to include all the necessary components to use the recirculation bulkhead included with the InfuSsion Mash Tun for vorlauf and mash recirculation processes. To install the kit on a standard mashtun begin by installing the included 1/2" FPT x 1/2" Barb on the exterior of your mash tun's recirculation bulkhead.  Be sure to use PTFE tape for a liquid-tight seal. If using the supplied kit on a TC mashtun, begin installation with included 3/4" TC to 1/2" 90 Barb, 3/4" TC gasket and clamp.

Next, locate the 3/8" knurled locknut, 3/8" silicone tubing, and recirculation manifold.  Trim the tubing to your desired length, and then use the hose clamps to secure the two ends of the tubing to the manifold and locknut.

As a best practice, begin the mash recirculation for the first 5-10 mins using the vorlauf attachment to clear any small grain particulate and to set the mash bed, then swap the vorlauf attachment for the recirculation manifold for the remainder of the mash rest.  Please keep in mind this kit is designed to use with a wort pump and an external heat source, such as a RIMS tube to maintain mash temps, which is not supplied.

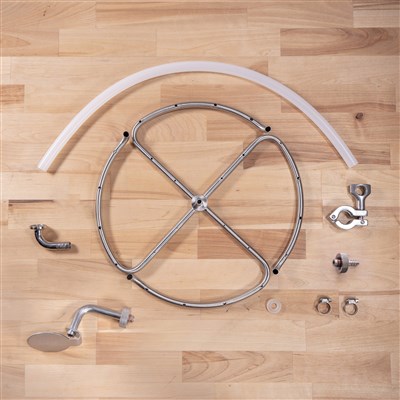

The kit includes:

Recirculation Manifold

• Vorlauf Attachment
• 3/8" Barb to 1/2" FPT Knurled Locknut
• (2) 3/8" Stainless Hose Clamps
• 2 Feet of 3/8" ID Silicone Tubing
• 1/2" FPT to 1/2" Hose Barb or 3/4" TC barb with gasket and clamp
• 3/4" TC to 1/2" 90 Barb ( for use with TC Mashtun)
• 3/4" TC Clamp (for use with TC Mashtun)
• 3/4" TC Gasket (for use with TC Mashtun)

Works with New (TC) Mash Tun and Origina
