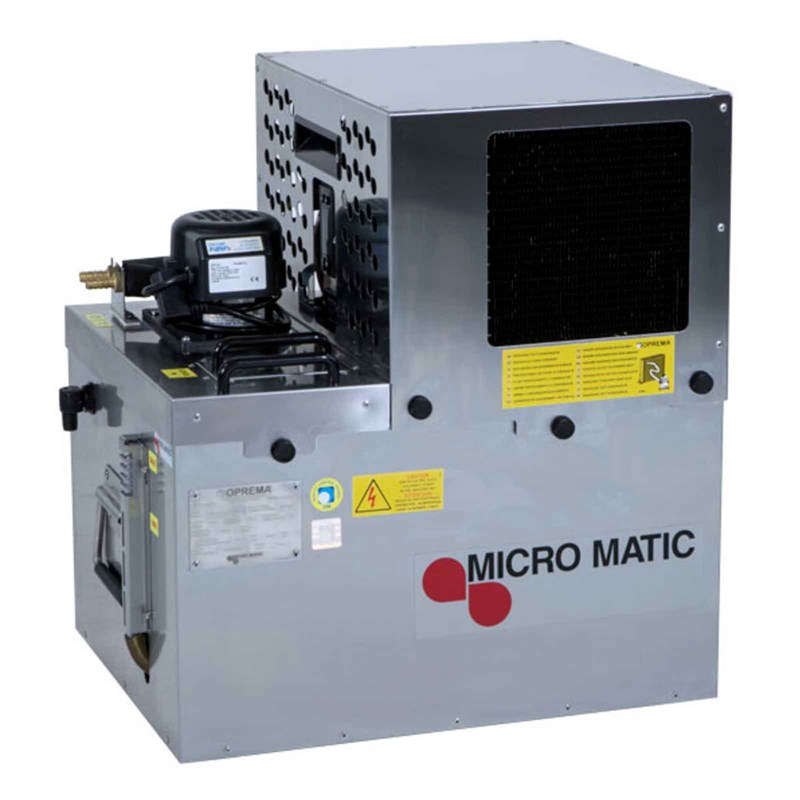

Pro-Line™ Power Pack Glycol Chiller Cooling System - 1,700 BTU - 1/4 HP

Pro-Line™ Power Pack Glycol Beer Cooling System with 1 Pump

Keep Your Draft Beer Cold from Cooler to Faucet

Ensure your draft beer is served at the perfect temperature, even over long distances, with the Pro-Line™ Power Pack Glycol Beer Cooling System. Designed to maintain the same temperature as your walk-in cooler, this system uses a glycol power pack to circulate propylene glycol—a non-toxic, food-grade antifreeze mixture—alongside the beer lines, right up to the faucet.

Industry-Leading Efficiency and Reliability

Micro Matic is dedicated to providing the most efficient and reliable glycol power packs available. Our Pro-Line™ Power Packs are crafted by experts in the draft beer industry, specifically with installers and operators in mind. The large glycol bath and superior insulation mean the compressor cycles less frequently, extending the life of the power pack and minimizing service calls and downtime. Our extensive range of power packs is trusted by establishments from local bars to the highest volume accounts worldwide.

Key Features

Sight Glass for Bath Level: Easily verify the glycol level without removing the lid.
Digital Thermostat: The adjustable digital thermostat provides an accurate glycol temperature display for easy readability.
Pumps: Industry-standard rotary vane pumps are ultra-reliable and easily serviced, reducing replacement needs and downtime.
Thermally-Efficient Bath: With a large capacity bath and expanded foam insulation, our units run less frequently, saving energy and extending compressor life.
Lift-Off Deck Lid: The completely assembled upper deck ensures easy serviceability and reliable performance.

Warranty

All power packs come with an 18-month warranty against defects in material and workmanship, plus a one-year labor warranty from the date of sale. Defective parts, upon inspection, will be replaced or repaired free of charge during the warranty period. The compressor is covered for an additional three and a half years. Any loss of sales must be borne by the purchaser.

Enhance your draft beer system with the Pro-Line™ Power Pack Glycol Beer Cooling System, ensuring your beer is always served cold and fresh, no matter the distance.

Specifications

• 1,700 BTU
• 1/4 HP air-cooled compressor
• 4.5-gallon glycol bath
• Single pump for glycol recirculation
• BTU Capacity: 1,700 BTU
• Configuration: Self-Contained
• Compressor Cooling: Air Cooled
• Compressor: 1/4 HP
• Volts: 115V
• Plug Type: NEMA 5-15P
• Bath Capacity: 4.5 Gallons
• Pump Type: Vertical
• Number of Pumps: 1
• Height: 21-7/8"
• Width: 19-3/8"
• Length: 15-1/4"
• Weight: 77 lbs
• Approval: CE
• Cabinet Cover: Included Stainless Steel
• Amps (Running): 5.0
• Refrigerant: R513a
