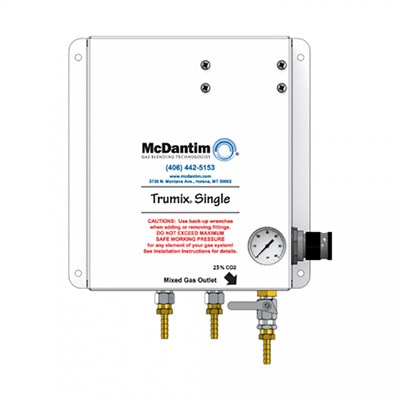

McDantim Trumix® Single Gas Blender (CO2 25%)

McDantim Trumix® Single Output Gas Blender

The McDantim Trumix® blenders mix CO2 and N2 on demand and are best used for long draw draft systems. The Trumix® Single blender comes preset with your custom blends to best fit your system. The panel mounts easily on the wall, and is simple to install. With the Trumix® Single HP blender, customization of the blends give you endless options and the flexibility to expand your draft beer selection. You could include low CO2 content nitrogenated beers, high CO2 content German Style beers, and domestic drafts on one system without the need for additional premixed cylinders.

Not sure of which blends you need? Download the McDantim EasyBlend app, available on Android and iOS.

McDantim Trumix® Gas Blender Features:

• 25% CO2 & 75% N2
• Up to 15 Kegs/Hour per Blend
• Ends foaming
• Consistent pouring
• Guaranteed accuracy ±2%
• Inlet pressure 70 PSI
• 3/8" Barb fittings inlets/outlets
• Upgraded metal body inlet regulators to increase durability and safety
• Easy installation
• No electrical set-up required
• 5 Year Limited Warranty

Does not operate if either supply gas fails or becomes empty.

*Optional Plug & Play In-Line Leak Indicator package

McDantim Trumix® Gas Blender Specifications

Size: 9.5" wide (including mounting flanges x 10" high x 4.5" deep)
Connections: Two Inlet Gas Lines (CO2 & N2), Mixed Gas Outlet Line per blend.
Fittings: Panel comes with standard 1/4" female NPT fittings. Hose barbs available at no additional costs. Specify size: 1/4", 5/16", and 3/8".
Accuracy and Flow Range: Maintains accuracy of +/- 2% of full scale or better within the flow range of .4 to 40 liters per minute (.85 to 85 cubic feet per hour).
Standard Flow Capacity:

At 55 psi minimum inlet pressure, up to 12 kegs/hour per blend.
At 70 psi minimum inlet pressure, up to 16 kegs/hour per blend.
At 110 psi minimum inlet pressure, up to 26 kegs/hour per blend.

Inlet Pressures: Blender tuned in house with minimum required inlet pressure. Standard pressures are 55 and 70 psi, but can be customized for your system. Maximum inlet working pressure of 150 psi. Includes upgraded metal body Inlet Regulators with a maximum safe pressure up to 325 psi.
Outlet Pressures: Adjustable outlet pressure of 0-60 psi per blend. The maximum outlet pressure will always be 10 psi lower than the minimum inlet pressure.
