Glycol Chiller Pump Kit

Glycol Chiller Pump Kit for Glycol Chillers without Pumps

Take control of your fermentation temperature like a pro with the BrewBuilt Chilling Pump Kit! This kit is designed to use either ice water or glycol as a chilling solution, which is circulated through your chilling coil or cooling jacket by the included submersible pump. Available with a flow rate of either 800 or 1300 gallons per hour and a maximum lift height of nearly 10 feet, this compact yet powerful pump ensures your cooling solution circulates effortlessly. Paired with the Inkbird Dual Stage Temperature Controller, you can trust that your fermenters receive the precise chilling power they need, exactly when they need it.

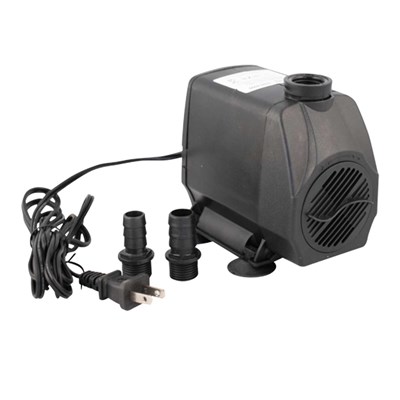

Submersible Pump

If you're looking for an affordable and efficient pump for your temperature control system, the BrewBuilt Chilling Pump Kit has you covered. Choose between an 800 GPH or 1300 GPH submersible pump, both compatible with icebank or glycol chillers. Despite their compact design, these pumps boast high flow rates and a maximum lift height of nearly 10 feet, ensuring consistent movement of your cooling solution.

• Flow Rate: 800 GPH for fermentations under 10 gallons; 1300 GPH for fermentations between 10 gallons and 2 barrels
• Maximum Lift Height: 9 to 10 feet
• Motor: High-quality, quiet motor (60W or 100W)
• Construction: Stainless steel impeller shaft for durability and corrosion resistance
• Power Cord: 6 feet long

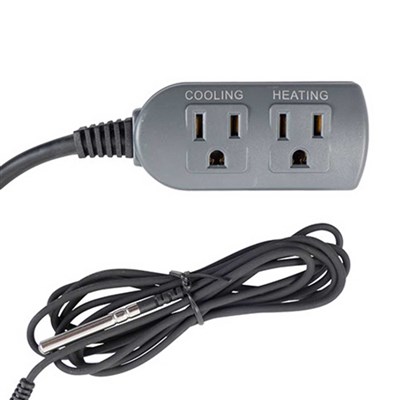

Inkbird Digital Temperature Controller

The Inkbird dual-stage temperature controller is a user-friendly and economical solution perfect for home brewing. It allows for precise control of both heating and cooling, with adjustable differentials to protect your equipment. The Inkbird ITC-308S controller is a cost-effective alternative to the Ranco or Johnson, offering similar functionality at a lower price. It's also versatile, suitable for cooking, home growing, and other DIY projects.

Features:

Design: Simple plug-and-play with a user-friendly LED interface
Control: Dual stage ITC-308 for both heating and cooling
Adjustability: Adjustable heating/cooling differential
Power: 1000W max
Temperature Range: -58° F to 210° F (-50° C to 99° C)
Alarms: High and low temperature and sensor fault alarms
Dimensions: 5.5 in x 2.7 in x 1.3 in

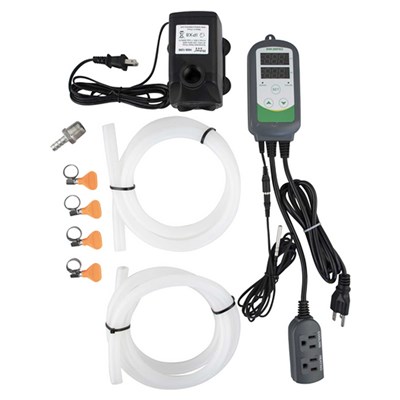

Chilling Pump Kit Includes:

• Submersible Water Pump
• Inkbird Dual Stage Digital Temperature Controller
• Silicone Tubing: 2x 5 ft. lengths of 3/8 in.
• Butterfly Hose Clamps: 4x
• Stainless 3/8" Barb x 1/2" MPT
