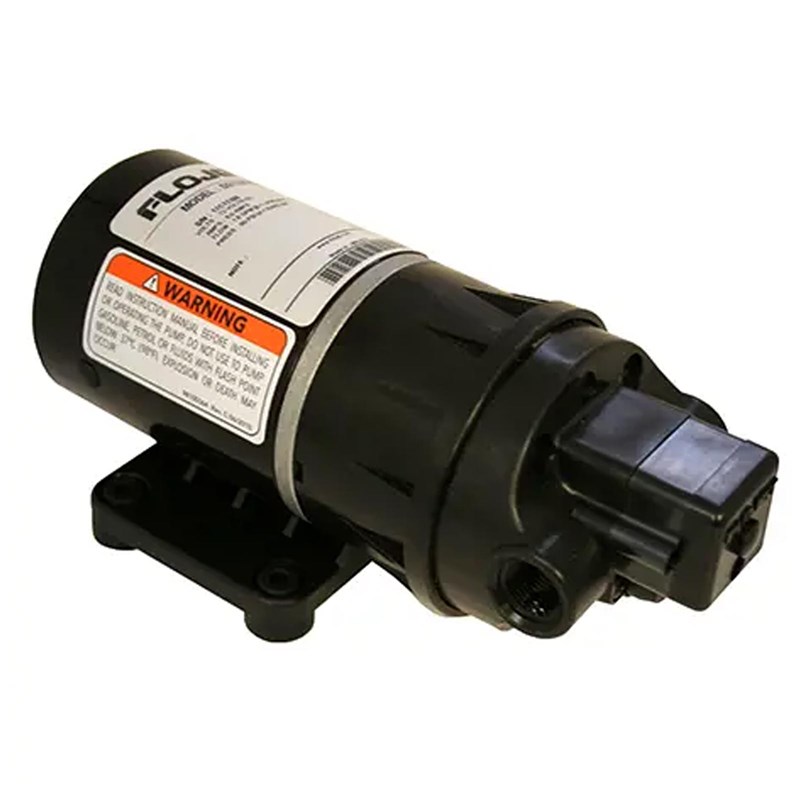

Flojet Duplex II - Electric Demand Pump

Flojet Duplex-II Series Diaphragm Pump: Reliable, Durable, and Versatile

The Flojet Duplex II Series diaphragm pumps are engineered with cutting-edge technology to deliver superior performance and reliability. Featuring self-priming capabilities up to 8 feet (2.4m), these pumps can run dry without damage and are built with chemically resistant materials, ensuring durability in various conditions.

Designed for efficiency and longevity, the Duplex II Series pump combines an advanced motor, check valves, and diaphragm assembly to deliver high dry vacuum capability. Available in various performance ranges, voltages, and elastomer options, these pumps are adaptable to a wide range of applications such as automotive use, chemical transfer, agricultural spraying, construction, and general-purpose tasks.

Key Features:

• Self-Priming: Works efficiently up to 8 feet (2.4m).
• Run Dry Protection: Capable of running dry without causing damage.
• Chemically Resistant: Built with durable, resistant materials for long-lasting use.
• Internal Bypass: Standard feature for optimized performance.
• Back-Flow Preventer: Built-in system to prevent reverse flow.
• Heavy-Duty Ball Bearings: Ensures smooth, reliable operation.
• Multiple Certifications: Available in UL, CSA, and CE models.

Flojet Part #: D1631H5011A

Specifications:

• Pressure: 60 PSI
• Flow Rate: 1.6 GPM
• Voltage: 115V
• Max Amps:  3.0 Amps at 25 PSI (1.7 bar)
• Net Weight: 1 LB
• Input/Outputs: 3/8" Female NPT
• Flojet Part #: D1631H5011A
