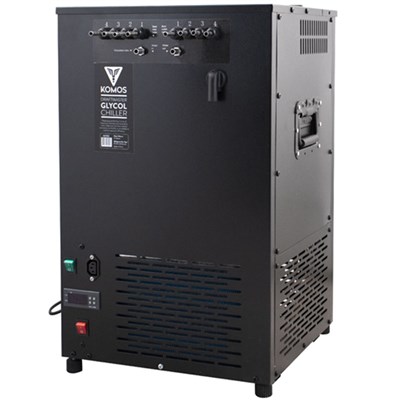

DraftMaster Glycol Chiller

The KOMOS DraftMaster is a perfect solution for small beer-serving establishments or home bars that want to pour from unrefrigerated kegs. It features 4 built-in stainless steel draft coils that remain submersed in a glycol solution reservoir, as well as a dedicated submersible pump that can be used to pump cooling solution through flooded draft towers or other draft line chilling apparatuses.

The draft coils are made from 8 mm OD stainless steel tubing. The inlets and outlets come ready for use with 8 mm Duotight fittings, or standard hose clamp / compression fittings if preferred. The temperature drop of the beverage after one pass through the coil will depend on several factors, such as the temp of the pre-chilled beer, reservoir solution, and ambient environment. Ideally, the DraftMaster should be used in ambient temperatures below 80°F with a 30% glycol solution. If operating the unit in hotter climates or with a non-glycol cooling solution, you may need to pass the beverage through two coils to lower it to serving temperature.

Although the DraftMaster is ideally used with propylene glycol to lower the cooling solution below 32°F, home users may find it works perfectly well with 100% distilled/RO water. We recommend leaving the reservoir temperature at or above 38°F when using water only, which will work well for cooling a single KOMOS Cobra tower or other glycol-ready draft tower.


Specifications:

• 4 built-in 8 mm OD stainless draft coils
• Submersible pump:
• 35 watts
• Max Head: 21 ft. (6.5 m)
• Max Flow Rate: 528 GPH (2000 LPH)
• 30L / 8 Gallon Water Tank Capacity
• 3/8 HP compressor
• 750 Watt/2600 btu Cooling Capacity
• Draft coils made from 304 stainless steel
• Labeled IN and OUT bulkheads
• r134a Refrigerant
• 110V (3.6 amps)
• Dimensions: 16.1" x 16.1" x 26"
• Wheels included
• CE Certified
